Global class for the program settings, which are accessed throughout the program. More...

#include <convertUNICADO2CPACSSettings.h>

Inheritance diagram for convertUNICADO2CPACSSettings:

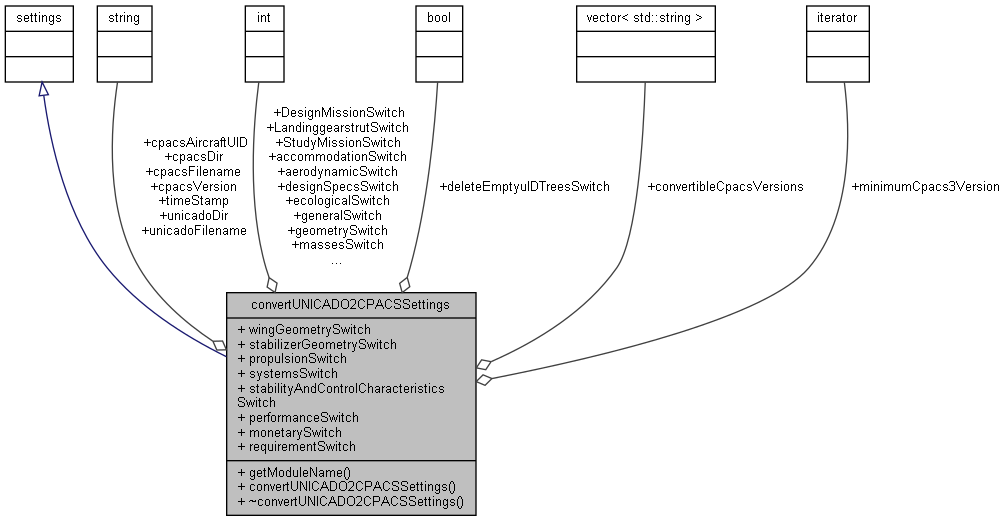

Collaboration diagram for convertUNICADO2CPACSSettings:

Public Member Functions
std::string	getModuleName ()

	convertUNICADO2CPACSSettings (const node &configXML)
	Constructor of class convertUNICADO2CPACSSettings. More...

virtual	~convertUNICADO2CPACSSettings ()
	Destructor of class convertUNICADO2CPACSSettings. More...

Public Attributes
std::string	unicadoDir

std::string	unicadoFilename

std::string	cpacsDir

std::string	cpacsFilename

std::string	cpacsVersion

std::string	cpacsAircraftUID

int	generalSwitch

int	massesSwitch

int	geometrySwitch

int	wingGeometrySwitch

int	stabilizerGeometrySwitch

int	LandinggearstrutSwitch

int	accommodationSwitch

int	propulsionSwitch

int	systemsSwitch

int	aerodynamicSwitch

int	stabilityAndControlCharacteristicsSwitch

int	performanceSwitch

int	DesignMissionSwitch

int	StudyMissionSwitch

int	monetarySwitch

int	ecologicalSwitch

int	requirementSwitch

int	designSpecsSwitch

bool	deleteEmptyuIDTreesSwitch

std::vector< std::string >	convertibleCpacsVersions

std::vector< std::string >::iterator	minimumCpacs3Version

std::string	timeStamp

Detailed Description

Global class for the program settings, which are accessed throughout the program.

Constructor & Destructor Documentation

◆ convertUNICADO2CPACSSettings()

convertUNICADO2CPACSSettings::convertUNICADO2CPACSSettings ( const node & configXML )

explicit

Constructor of class convertUNICADO2CPACSSettings.

◆ ~convertUNICADO2CPACSSettings()

convertUNICADO2CPACSSettings::~convertUNICADO2CPACSSettings ( )

virtual

Destructor of class convertUNICADO2CPACSSettings.

Member Function Documentation

◆ getModuleName()

string convertUNICADO2CPACSSettings::getModuleName ( )

Reads the module name from config xml

Member Data Documentation

◆ accommodationSwitch

int convertUNICADO2CPACSSettings::accommodationSwitch

Specifies if "Accommodation" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ aerodynamicSwitch

int convertUNICADO2CPACSSettings::aerodynamicSwitch

Specifies if "Aerodynamics" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ convertibleCpacsVersions

std::vector<std::string> convertUNICADO2CPACSSettings::convertibleCpacsVersions

Specifies which CPACS versions can be converted by UNICADO2CPACS

◆ cpacsAircraftUID

std::string convertUNICADO2CPACSSettings::cpacsAircraftUID

uID for the CPACS file which is specified by the UNICADO module name

◆ cpacsDir

std::string convertUNICADO2CPACSSettings::cpacsDir

Direction where the CPACS file can be found

◆ cpacsFilename

std::string convertUNICADO2CPACSSettings::cpacsFilename

Name of the CPACS aircraft exchange file

◆ cpacsVersion

std::string convertUNICADO2CPACSSettings::cpacsVersion

CPACS version number X.Y.Z which shall be converted

◆ deleteEmptyuIDTreesSwitch

bool convertUNICADO2CPACSSettings::deleteEmptyuIDTreesSwitch

Specifies if uID-trees be shall in CPACS - 1: yes, 0: no

◆ DesignMissionSwitch

int convertUNICADO2CPACSSettings::DesignMissionSwitch

Specifies if missionDesign.xml shall be converted to CPACS

◆ designSpecsSwitch

int convertUNICADO2CPACSSettings::designSpecsSwitch

Specifies if "design specifications" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ ecologicalSwitch

int convertUNICADO2CPACSSettings::ecologicalSwitch

Specifies if "ecological values" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ generalSwitch

int convertUNICADO2CPACSSettings::generalSwitch

Specifies if "General" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ geometrySwitch

int convertUNICADO2CPACSSettings::geometrySwitch

Specifies if complete aircraft Geometry shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ LandinggearstrutSwitch

int convertUNICADO2CPACSSettings::LandinggearstrutSwitch

Specifies if landing gear struts shall be displayed - 1: yes, 0: no (only available for CPACS 3+)

◆ massesSwitch

int convertUNICADO2CPACSSettings::massesSwitch

Specifies if "Masses" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ minimumCpacs3Version

std::vector<std::string>::iterator convertUNICADO2CPACSSettings::minimumCpacs3Version

Specifies the minimum version for CPACS 3 (e. g. 3.0.0)

◆ monetarySwitch

int convertUNICADO2CPACSSettings::monetarySwitch

Specifies if "monetary values" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ performanceSwitch

int convertUNICADO2CPACSSettings::performanceSwitch

Specifies if "mission and trajectory" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ propulsionSwitch

int convertUNICADO2CPACSSettings::propulsionSwitch

Specifies if "Propulsion" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ requirementSwitch

int convertUNICADO2CPACSSettings::requirementSwitch

Specifies if "requirements" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ stabilityAndControlCharacteristicsSwitch

int convertUNICADO2CPACSSettings::stabilityAndControlCharacteristicsSwitch

Specifies if "stability and control characteristics" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ stabilizerGeometrySwitch

int convertUNICADO2CPACSSettings::stabilizerGeometrySwitch

Specifies if "Stabilizer Geometry" shall be converted from UNICADO to CPACS in case geometrySwitch=0 - 1: yes, 0: no

◆ StudyMissionSwitch

int convertUNICADO2CPACSSettings::StudyMissionSwitch

Specifies if missionStudy.xml shall be converted to CPACS

◆ systemsSwitch

int convertUNICADO2CPACSSettings::systemsSwitch

Specifies if "Systems" shall be converted from UNICADO to CPACS - 1: yes, 0: no

◆ timeStamp

std::string convertUNICADO2CPACSSettings::timeStamp

Gets the current time and date in the following format: "%Y-%m-%dT%H:%M:%S"

◆ unicadoDir

std::string convertUNICADO2CPACSSettings::unicadoDir

Direction where the UNICADO aircraft exchange file can be found

◆ unicadoFilename

std::string convertUNICADO2CPACSSettings::unicadoFilename

Name of the UNICADO aircraft exchange file

◆ wingGeometrySwitch

int convertUNICADO2CPACSSettings::wingGeometrySwitch

Specifies if "Wing Geometry" shall be converted from UNICADO to CPACS in case geometrySwitch=0 - 1: yes, 0: no
