cpacsAcft Class Reference

Class that represents the CPACS Aircrafts XML Structure. More...

#include <cpacsAcftXML.h>

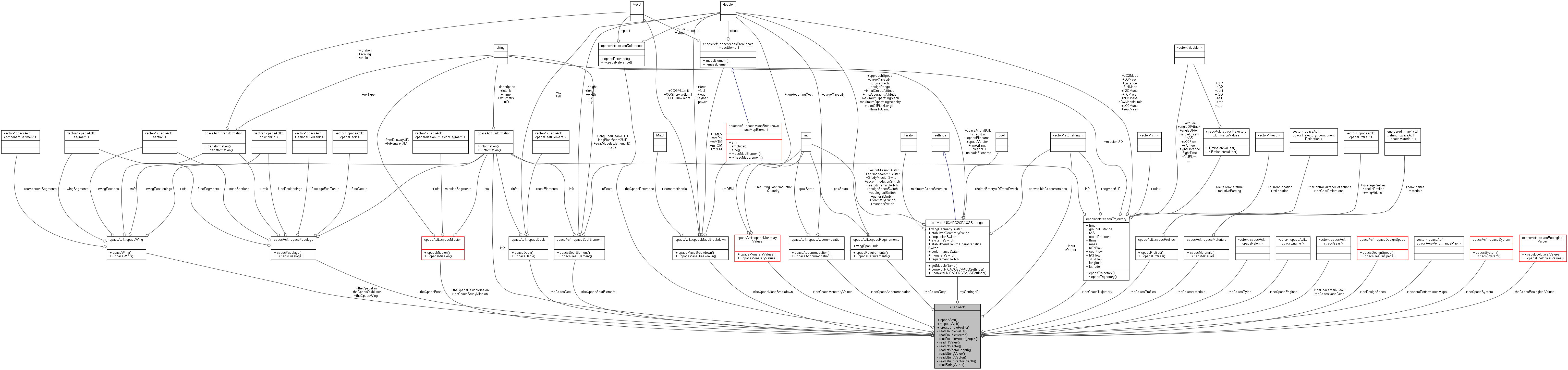

Collaboration diagram for cpacsAcft:

Classes
class	componentSegment
	Class which represents the CPACS componentSegment-XML-Block. More...
class	controlSurface
	Class that represents the CPACS Control Surface XML Block. Definition of the outer shape, structure and deflection of all control surfaces (flaps, slats, spoiler, ailerons...) of the wing. More...
class	cpacsAccommodation
	Class only used for conversion to UNICADO to include accommodations. More...
class	cpacsAeroPerformanceMap
	Class which contains the aerodynamic performance data. More...
class	cpacsDeck
	Class which represents the CPACS deck element XML block. More...
class	cpacsDesignSpecs
	Class only used for conversion to UNICADO to include design specifications. More...
class	cpacsEcologicalValues
	Represents the CPACS ecological values block. More...
class	cpacsEngine
	Class which contains geometry and performance parameters of the engine. More...
class	cpacsFuselage
	Class which represents the CPACS fuselage XML block. More...
class	cpacsGear
	Class which represents the CPACS gear XML block. More...
class	cpacsIsotropicProperties
	Class which represents the CPACS isotropic properties block. More...
class	cpacsMassBreakdown
class	cpacsMaterial
	Class which represents the CPACS material XML block. More...
class	cpacsMaterialProperties
	Class which represents the CPACS MaterialProperties. More...
class	cpacsMaterials
	Class which represents the CPACS materials XML block. More...
class	cpacsMission
	Class which represents the CPACS missions XML Block. More...
class	cpacsMonetaryValues
	Class which represents the CPACS monetary values block. More...
class	cpacsProfile
	Class which represents the CPACS profile XML block (fuselage and wing) More...
class	cpacsProfiles
	Class which represents the CPACS profiles XML block (fuselage and wing) More...
class	cpacsPylon
	Class which represents the CPACS pylon XML block. More...
class	cpacsReference
	Class that represents the CPACS reference block. More...
class	cpacsRequirements
	Represents the CPACS requirements block. More...
class	cpacsSeatElement
	Class which represents the CPACS seat element XML block. More...
class	cpacsSystem
	Class which contains the performance parameters of the system. More...
class	cpacsTrajectory
	Class which represents the CPACS trajectory XML block. More...
class	cpacsWing
	Class which represents the CPACS wing XML block. More...
class	element
	Class that represents the generalized CPACS Elements-Block, that is used for all components such as wing, fuselage, etc. More...
class	fuelTank
	Class which describes the different volumes of the fuel tank. More...
class	fuselageFuelTank
	Class which describes the different volumes of the fuselage fuel tank including its position. More...
class	information
	Class that represents the CPACS Info which is used for all components. More...
class	positioning
	Class that represents the generalized CPACS Positionings Block, that is used for all components such as wing, fuselage, etc. More...
class	section
	Class that represents the generalized CPACS Section Block, that is used for all components such as wing, fuselage, etc. More...
class	segment
	Class that represents the generalized CPACS Segments Block, that is used for all components such as wing, fuselage, etc. More...
class	spars
	Class which defines the spars in CPACS. More...
class	transformation
	Class that represents the CPACS Transformation Block, that is used for all components such as wing, fuselage, etc. More...
class	wingFuelTank
	Class which describes the different volumes of the wing fuel tank including its position. More...

Public Member Functions
	cpacsAcft (const convertUNICADO2CPACSSettings &mySettings)
	Constructor of class cpacsAcft. More...
virtual	~cpacsAcft ()
	Destructor of class cpacsAcft. More...
void	createCircleProfile ()
	creates coordinates list for the wheel geometry in CPACS More...

Public Attributes
std::vector< std::string >	Input
std::vector< std::string >	Output
information	info
cpacsReference	theCpacsReference
cpacsMassBreakdown	theCpacsMassBreakdown
cpacsProfiles	theCpacsProfiles
cpacsMaterials	theCpacsMaterials
cpacsWing	theCpacsWing
cpacsWing	theCpacsStabiliser
cpacsWing	theCpacsFin
cpacsSeatElement	theCpacsSeatElement
cpacsDeck	theCpacsDeck
cpacsFuselage	theCpacsFuse
std::vector< cpacsPylon >	theCpacsPylon
std::vector< cpacsEngine >	theCpacsEngines
std::vector< cpacsGear >	theCpacsNoseGear
std::vector< cpacsGear >	theCpacsMainGear
cpacsTrajectory	theCpacsTrajectory
cpacsMission	theCpacsDesignMission
cpacsMission	theCpacsStudyMission
cpacsAccommodation	theCpacsAccommodation
cpacsDesignSpecs	theDesignSpecs
std::vector< cpacsAeroPerformanceMap >	theAeroPerformanceMaps
cpacsSystem	theCpacsSystem
cpacsMonetaryValues	theCpacsMonetaryValues
cpacsEcologicalValues	theCpacsEcologicalValues
cpacsRequirements	theCpacsReqs

Private Member Functions
double	readDoubleValue (std::string pathXML, double lowerBound, double upperBound)
	Function that reads a double value. More...
std::vector< double >	readDoubleVector (std::string pathXML, double lowerBound, double upperBound)
	Function that reads a double vector. More...
std::vector< double >	readDoubleVector_depth (std::string pathXML, double lowerBound, double upperBound)
	Function that reads a double vector in the whole XML-document. More...
int	readIntValue (std::string pathXML, double lowerBound, double upperBound)
	Function that reads an integer value. More...
std::vector< int >	readIntVector (std::string pathXML, double lowerBound, double upperBound)
	Function that reads an integer vector. More...
std::vector< int >	readIntVector_depth (std::string pathXML, double lowerBound, double upperBound)
	Function that reads an integer vector in the whole XML-document. More...
std::string	readStringValue (std::string pathXML)
	Function that reads a string value. More...
std::vector< std::string >	readStringVector (std::string pathXML)
	Function that reads a string vector. More...
std::vector< std::string >	readStringVector_depth (std::string pathXML)
	Function that reads a string vector in the whole XML-document. More...
std::string	readStringAttrib (std::string pathXML, std::string attribute)
	Function that reads a string attribute. More...

Private Attributes
const convertUNICADO2CPACSSettings *	mySettingsPt

Detailed Description

Class that represents the CPACS Aircrafts XML Structure.

Constructor & Destructor Documentation

cpacsAcft()

cpacsAcft::cpacsAcft ( const convertUNICADO2CPACSSettings &  mySettings )

explicit

Constructor of class cpacsAcft.

Parameters

convertUNICADO2CPACSSettings	Global class for the program settings, which are accessed throughout the program
mySettings	Global settings object

Here is the call graph for this function:

~cpacsAcft()

cpacsAcft::~cpacsAcft ( )

virtual

Destructor of class cpacsAcft.

Member Function Documentation

createCircleProfile()

void cpacsAcft::createCircleProfile

(

)

creates coordinates list for the wheel geometry in CPACS

Here is the caller graph for this function:

readDoubleValue()

double cpacsAcft::readDoubleValue ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads a double value.

Parameters

pathXML	Path to the info which shall be read
lowerBound
upperBound

readDoubleVector()

std::vector< double > cpacsAcft::readDoubleVector ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads a double vector.

Parameters

pathXML	Path to the info which shall be read

param

readDoubleVector_depth()

std::vector< double > cpacsAcft::readDoubleVector_depth ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads a double vector in the whole XML-document.

Parameters

pathXML	Path to the info which shall be read

param

readIntValue()

int cpacsAcft::readIntValue ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads an integer value.

Parameters

pathXML	Path to the info which shall be read

param

readIntVector()

std::vector< int > cpacsAcft::readIntVector ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads an integer vector.

Parameters

pathXML	Path to the info which shall be read

param

readIntVector_depth()

std::vector< int > cpacsAcft::readIntVector_depth ( std::string  pathXML, double  lowerBound, double  upperBound  )

private

Function that reads an integer vector in the whole XML-document.

Parameters

pathXML	Path to the info which shall be read

param

readStringAttrib()

std::string cpacsAcft::readStringAttrib ( std::string  pathXML, std::string  attribute  )

private

Function that reads a string attribute.

Parameters

pathXML	Path to the info which shall be read

param

readStringValue()

std::string cpacsAcft::readStringValue ( std::string  pathXML )

private

Function that reads a string value.

Parameters

pathXML	Path to the info which shall be read

param

readStringVector()

std::vector< std::string > cpacsAcft::readStringVector ( std::string  pathXML )

private

Function that reads a string vector.

Parameters

pathXML	Path to the info which shall be read

param

readStringVector_depth()

std::vector< std::string > cpacsAcft::readStringVector_depth ( std::string  pathXML )

private

Function that reads a string vector in the whole XML-document.

Parameters

pathXML	Path to the info which shall be read

param

Member Data Documentation

info

information cpacsAcft::info

Object of the information class that provides the CPACS infos like uID and description

Input

std::vector<std::string> cpacsAcft::Input

Vector for input data (to be written in _info.txt & _guiSettings.xml files)

mySettingsPt

const convertUNICADO2CPACSSettings* cpacsAcft::mySettingsPt

private

Pointer to the settings

Output

std::vector<std::string> cpacsAcft::Output

Vector for output data (to be written in _info.txt & _guiSettings.xml files)

theAeroPerformanceMaps

std::vector<cpacsAeroPerformanceMap> cpacsAcft::theAeroPerformanceMaps

Vector which contains objects of the cpacsAeroPerformanceMap class

theCpacsAccommodation

cpacsAccommodation cpacsAcft::theCpacsAccommodation

cpacsAccommodation class object

theCpacsDeck

cpacsDeck cpacsAcft::theCpacsDeck

cpacsDeck class object

theCpacsDesignMission

cpacsMission cpacsAcft::theCpacsDesignMission

cpacsMission class object

theCpacsEcologicalValues

cpacsEcologicalValues cpacsAcft::theCpacsEcologicalValues

cpacsEcologicalValues class object

theCpacsEngines

std::vector<cpacsEngine> cpacsAcft::theCpacsEngines

vector which contains objects of the cpacsEngine class

theCpacsFin

cpacsWing cpacsAcft::theCpacsFin

cpacsWing class object

theCpacsFuse

cpacsFuselage cpacsAcft::theCpacsFuse

cpacsFuselage class object

theCpacsMainGear

std::vector<cpacsGear> cpacsAcft::theCpacsMainGear

Vector which contains objects of the cpacsGear class

theCpacsMassBreakdown

cpacsMassBreakdown cpacsAcft::theCpacsMassBreakdown

Object called "theCpacsMassBreakdown" which is a member of the cpacsMassBreakdown class

theCpacsMaterials

cpacsMaterials cpacsAcft::theCpacsMaterials

cpacsMaterials class object

theCpacsMonetaryValues

cpacsMonetaryValues cpacsAcft::theCpacsMonetaryValues

cpacsMonetaryValues class object

theCpacsNoseGear

std::vector<cpacsGear> cpacsAcft::theCpacsNoseGear

Vector which contains objects of the cpacsGear class

theCpacsProfiles

cpacsProfiles cpacsAcft::theCpacsProfiles

Object of the cpacsProfiles class

theCpacsPylon

std::vector<cpacsPylon> cpacsAcft::theCpacsPylon

vector containing cpacsPylon class objects

theCpacsReference

cpacsReference cpacsAcft::theCpacsReference

Object called "theCpacsReference" which is a member of the cpacsReference class

theCpacsReqs

cpacsRequirements cpacsAcft::theCpacsReqs

cpacsRequirements class object

theCpacsSeatElement

cpacsSeatElement cpacsAcft::theCpacsSeatElement

cpacsSeatElement class object

theCpacsStabiliser

cpacsWing cpacsAcft::theCpacsStabiliser

cpacsWing class object

theCpacsStudyMission

cpacsMission cpacsAcft::theCpacsStudyMission

cpacsMission class object

theCpacsSystem

cpacsSystem cpacsAcft::theCpacsSystem

cpacsSystem class object

theCpacsTrajectory

cpacsTrajectory cpacsAcft::theCpacsTrajectory

cpacsTrajectory class object

theCpacsWing

cpacsWing cpacsAcft::theCpacsWing

cpacsWing class object

theDesignSpecs

cpacsDesignSpecs cpacsAcft::theDesignSpecs

cpacsDesignSpecs class object

---

The documentation for this class was generated from the following files:

• cpacsAcftXML.h
• cpacsAcftXML.cpp
