cpacsAcft::controlSurface::intermediateAirfoil Class Reference

Class which describes the airfoil definition of a control surface between inner and outer border. More...

#include <cpacsAcftXML.h>

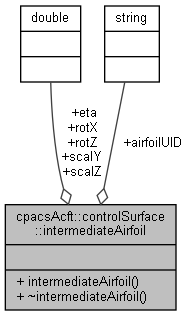

Collaboration diagram for cpacsAcft::controlSurface::intermediateAirfoil:

Public Member Functions
	intermediateAirfoil ()
	Constructor of class intermediateAirfoil. More...
virtual	~intermediateAirfoil ()
	Destructor of class intermediateAirfoil. More...

Public Attributes
double	eta
std::string	airfoilUID
double	rotX
double	rotZ
double	scalY
double	scalZ

Detailed Description

Class which describes the airfoil definition of a control surface between inner and outer border.

Constructor & Destructor Documentation

intermediateAirfoil()

cpacsAcft::controlSurface::intermediateAirfoil::intermediateAirfoil

(

)

Constructor of class intermediateAirfoil.

~intermediateAirfoil()

cpacsAcft::controlSurface::intermediateAirfoil::~intermediateAirfoil ( )

virtual

Destructor of class intermediateAirfoil.

Member Data Documentation

airfoilUID

std::string cpacsAcft::controlSurface::intermediateAirfoil::airfoilUID

Reference to the CPACS airfoil uID.

eta

double cpacsAcft::controlSurface::intermediateAirfoil::eta

Relative spanwise coordinate (eta) of the control surface, where the leading edge of the airfoil is placed.

rotX

double cpacsAcft::controlSurface::intermediateAirfoil::rotX

Rotation around axis from leading edge point to trailing edge point of the control surface [deg]

rotZ

double cpacsAcft::controlSurface::intermediateAirfoil::rotZ

Rotation of the airfoil around the control surface middle plane normal direction. [deg]

scalY

double cpacsAcft::controlSurface::intermediateAirfoil::scalY

Scaling of the airfoil in spanwise direction (not used for 2D airfoils).

scalZ

double cpacsAcft::controlSurface::intermediateAirfoil::scalZ

Scaling in thickness direction of the airfoil.

---

The documentation for this class was generated from the following files:

• cpacsAcftXML.h
• cpacsAcftXML.cpp
